Managing traffic flow at airports – connecting the data

Could this innovative, cost-effective approach be the answer to your congestion issues?

New Zealand’s Auckland International Airport is addressing its traffic challenges with a non-invasive, smart solution designed by Beca, with the initial phase delivered and operational in just two weeks. Beca’s Smart Cities lead, Richard Young, describes why the solution is so effective and what other airports and cities could learn from the project’s success.

Congestion is the scourge of city life, but nowhere does it have quite such significant effects as when it occurs around international airports. When passengers and crew miss their flights, the knock-on effect can create air travel pandemonium that stretches out to other cities and countries.

For Auckland International Airport, this is exactly what played out in December 2016. An undetected early afternoon incident triggered a succession of events that by 5pm turned a routine 20-minute journey into a 90-minute crawl. The resulting public, media and political outcry strengthened the resolve of the airport, Auckland Transport and the New Zealand Transport Agency (NZTA) to do all they can to prevent a reoccurrence.

Monitoring in siloes has its limitations

At that time there were multiple monitoring systems in place, including loop detectors and CCTV cameras with reasonable, if not comprehensive, coverage (operated by different organisations); several in-road count sites; and real-time data on passenger movements inside the terminals from an existing Remote Digital Recognition (RDR) solution from Veovo. What was missing was an end-to-end view of the road system outside the airport.

Creating a comprehensive Intelligent Transport System (ITS) solution - quickly

Beca was commissioned to deliver an immediate ‘quick fix’ ITS solution in the short period ahead of the busy Christmas break. Given the two week time period available, we recommended expanding the existing Beca-designed RDR traffic monitoring system that was in use on the motorway immediately outside the Airport. A robust and effective ITS system could be built quickly by adding some extra RDR sensors and augmenting those with four, advanced multi-lane Doppler tracking radar systems to count and classify every vehicle approaching and leaving the airport threshold and terminal areas.

RDR is an advanced radio based system that anonymously tracks a vehicle or mobile phone by collecting that device’s unique digital IDs and then matching it as it passes through a network. By partnering with world leader in RDR technology, Veovo of Denmark, Beca has been instrumental in delivering this powerful technology to highways, airports and major spectator events throughout New Zealand.

Our thinking was, wherever possible, to:

  • Accelerate implementation time: The sensors we chose could be deployed rapidly, at less than 30 minutes per sensor. They also had rechargeable batteries and we located them on streetlights, where they could harvest power; and equipped them with 3G modems.  That meant no extras cabling or fibre connections, which would require additional time and money, and we could place the RDR sensors on any available street light – not be tied to sub-optimal ITS cabin locations. Plus, we were able to work on configuration 24/7 by sharing shifts with our technology partner in Denmark.
  • Piggy-back on existing resources: The solution used the well-proven BlipTrack RDR system; the Doppler tracking radar solution could be retrofitted onto existing RDR sensors, so no new power or communications needed to be deployed.
  • Use non-invasive implementation techniques to avoid causing traffic delays: This also avoided any need to work in the road which was an important Safety in Design feature of the system. All configuration was undertaken remote from site making the process more efficient and safer.

All deployment was off-road, avoiding traffic delays

As a result, deployment was achieved in two days, with commissioning running in parallel. The rest of the time was taken up refining point-to-point travel time algorithms so the analytics software could learn to accurately identify useful trends in a complex travel environment, and calibrating the advanced radars to count traffic over six lanes and two directions simultaneously.

Figure 1: The challenge of identifying auditable trends (blue) from variable reality (red)

How to avoid traffic gridlock

In a busy, confined road system, gridlock occurs when the inflow exceeds outflow and all the available on-road capacity is used. The analogy is to a doorman letting too many people into a busy bar – resulting in no-one being able to move or leave! To prevent gridlock, controllers (human or machine) need to know where to intervene to control inflow; pinpoint the moment that intervention is necessary; and measure the effectiveness of that intervention.

  1. Identify critical intervention points. In the roads around the airport, we identified two key signalised roundabouts that offered the potential to intervene and reduce the inflow. These were the control points.
  2. Measure the indicators that are most crucial to the customer. While traditional highway engineers focus on level of service, occupancy, free flow and speed, none of these resonated with the Airport’s Operation’s Team. To them, and their customers, the only metric that was important was overall travel time – ‘Will I get my plane?”. As the Beca provided RDR system provides live accurate and live travel times – updated every two minutes – this proved to be the key method of assessing performance and managing traffic flows.
  3. Pool area-wide data to track inflow/outflow and journey times. To monitor for signs of any impending gridlock, the solution pools the RDR and radar data from both Airport and NZTA equipment and feeds it into an Active Balancing™ module developed by Veovo and Beca specifically for the project. The beauty of the Active Balancing™ module is that it tracks the inflow and outflow in real time and presents the results graphically to the traffic controller. When inflow approaches or exceeds outflow, the display turns red, alerting the controller of the need for an intervention – in this case, to extend the inbound red signal time.
  4. Make numbers driven decisions and be bold. Unlike relying on a CCTV screens, the traffic operations teams are using hard numbers to assess when to intervene, how much to intervene and then measure how effective that intervention has been. The Airport team set an overall maximum Target Journey Time from joining the back of an airport bound queue to arriving at the Terminal of 30 minutes.
    When Travel Times around the Terminals grow too long the most important action to allow traffic to leave the Airport. The most effective intervention is to use the approach motorway as a short term store by holding traffic on a red at the signalised airport entry roundabout. This managed delay is advised to drivers through a mobile VMS sign showing live Travel Times. Once released from the queue the overall inbound journey to the Terminal is still faster than allowing the motorway traffic to freely enter the airport and add to the congestion. Since the Beca designed and delivered Active Balancing™ solution was implemented, peak delays have been within 30 minutes, which is in-line with public travel advisory provided for customers travelling at peak times.

What can other clients learn from this experience?

The critical ITS success factors comprised a combination of:

  • Public and private willingness to collaborate and share data across a neutral traffic analysis platform.
  • Customer focused outcomes with a focus on the metrics that really matter.
  • Pooled city-wide data from multiple sources to provide live actionable decision-making insights.
  • Critical data visualised simply in real time so controllers can respond appropriately.
  • A modular, non-invasive solution for fast, no-disruption deployment.
  • Managing by numbers using hard data to make decisions and measure the effect of an intervention the same way.

Targeted maximum journey time to terminal

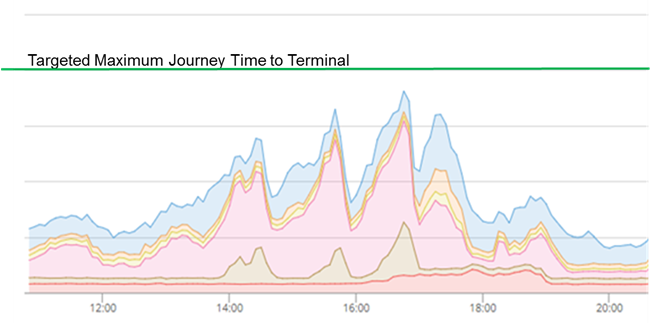

Figure 2: Using Active Balancing™ to control flows and deliver targeted Journeys Times. A series of interventions to deliberately hold traffic for set periods outside the Airport so that it did not become grid locked.

But, perhaps the biggest take out is that this solution to actively manage traffic can readily be adapted to other locations. While it will not solve every local congestion issue, it may provide a cost effective and flexible method to alleviate congestion.

Read more about the technology used to make this happen in this article by our technology partner, Veovo.

Installing RDR and Doppler Radar traffic monitoring technology, a rapid, simple operation that does not interfere with traffic flows

Figure 3: Installing RDR and Doppler Radar traffic monitoring technology, a rapid, simple operation that does not interfere with traffic flows.

About the Author

Richard Young

Senior Associate - Civil Engineering

Richard is the Smart Cities technology lead within Beca. He is passionate about working with clients to identify appropriate systems and approaches to deliver successful, cost effective and most importantly - practical solutions. While he has two civil engineering degrees and has worked on major construction projects on three continents, it is the skills learned studying for his MBA and then working ten years in the mobile telecoms sector that have given him the tools needed to take Beca’s fledgling digital tracking service into a rapidly growing segment of the business. While no Einstein he shares the great man’s obsession that ‘Everything should be made as simple as possible – but no simpler’.
